Axis 20

Axis 20 Return Pump

Compact, Quiet, and Fully Controllable

The Axis 20 delivers big pump performance in a small package—ideal for all-in-one aquariums up to 15 gallons. With quiet DC motor operation, smart wireless control, and built-in calibration, the Axis 20 offers advanced features usually reserved for larger, more expensive pumps. Whether used as a return pump or for circulation, it provides reliable, customizable flow in nano setups.

Key Features:

• Designed for aquariums up to 15 gallons

• Quiet, energy-efficient DC motor

• Smart control via MyAI® app, Mobius®, or MXM Apex Fusion

• Three pump modes: Schedule, Feed, Calibrate

• Calibration prevents back-siphon by maintaining idle operation

• Coordinate multiple AI pumps with synced feed/maintenance modes

• Perfect as a return pump for AIO tanks

Coverage & Specs:

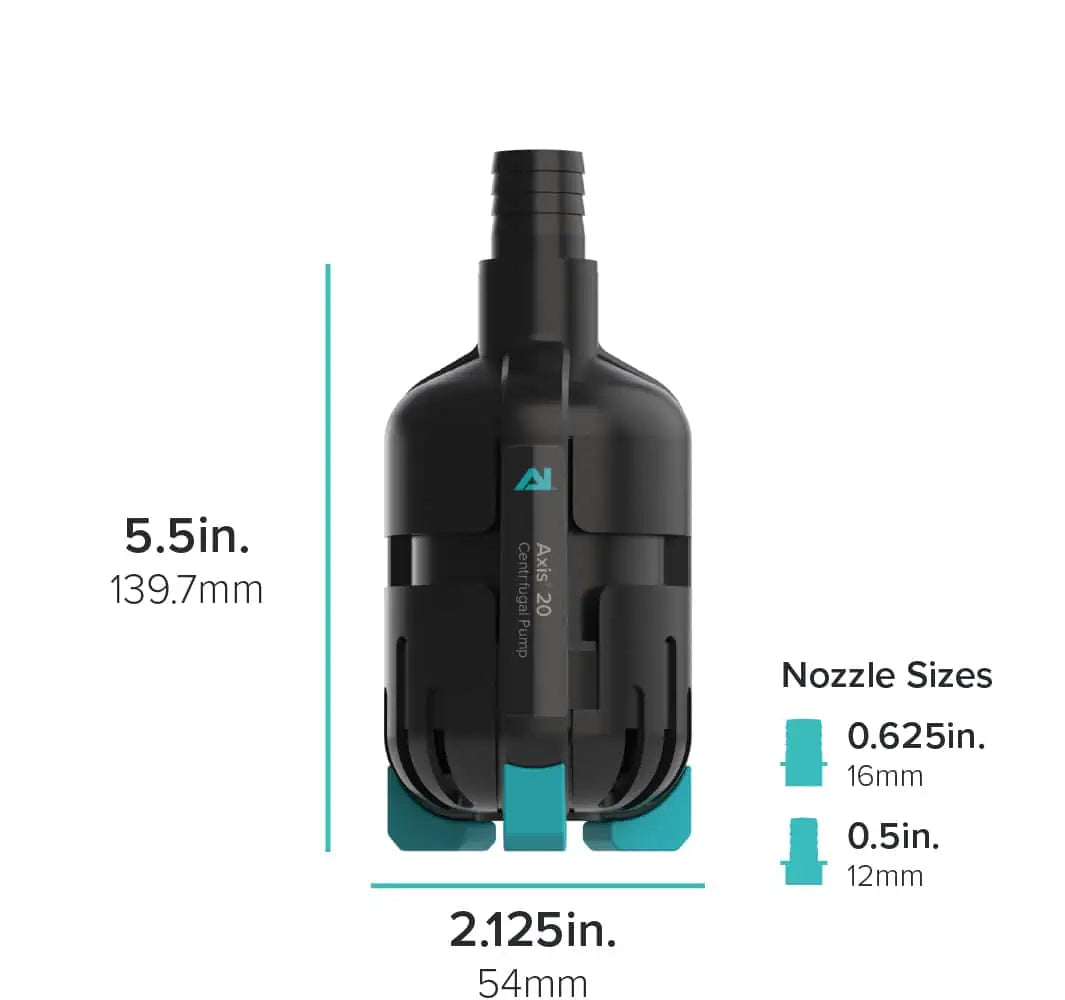

• Dimensions: 2.125" diameter x 5.5" tall

• Max Flow: ~185 GPH (700 LPH)

• Max Head: ~5 ft (1.5 m)

• Power Consumption: up to 12W

• Recommended Tank Size: up to 15 gallons

• Output Nozzle Sizes: 0.5" (12mm) & 0.625" (16mm)

What’s Included:

• 1x Axis 20 Centrifugal Pump

• 1x 0.5" (12mm) Barbed Output Nozzle

• 1x 0.625" (16mm) Barbed Output Nozzle

• 1x Power Supply

The Axis 20 makes controllable, feature-rich pumping power accessible for nano and AIO aquariums.
